JS EDM

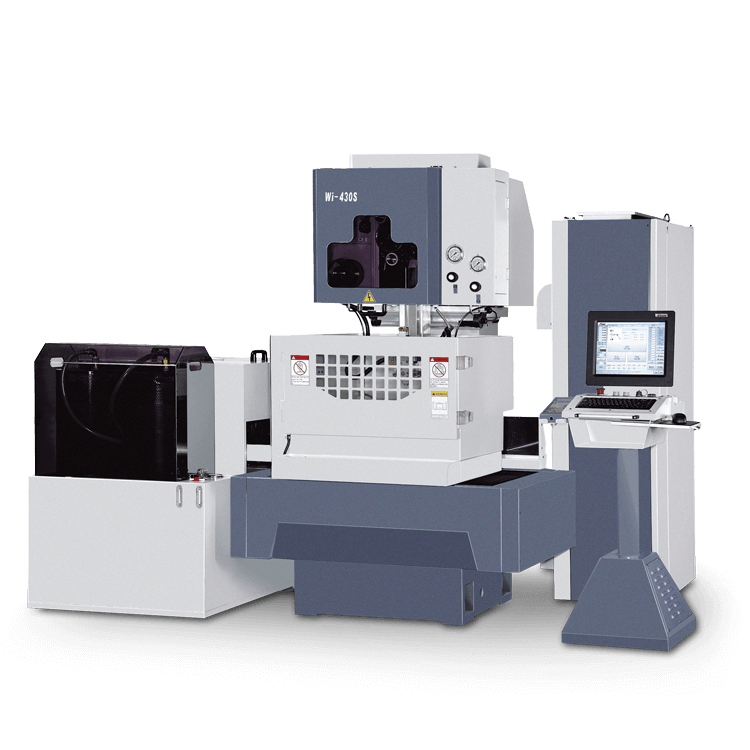

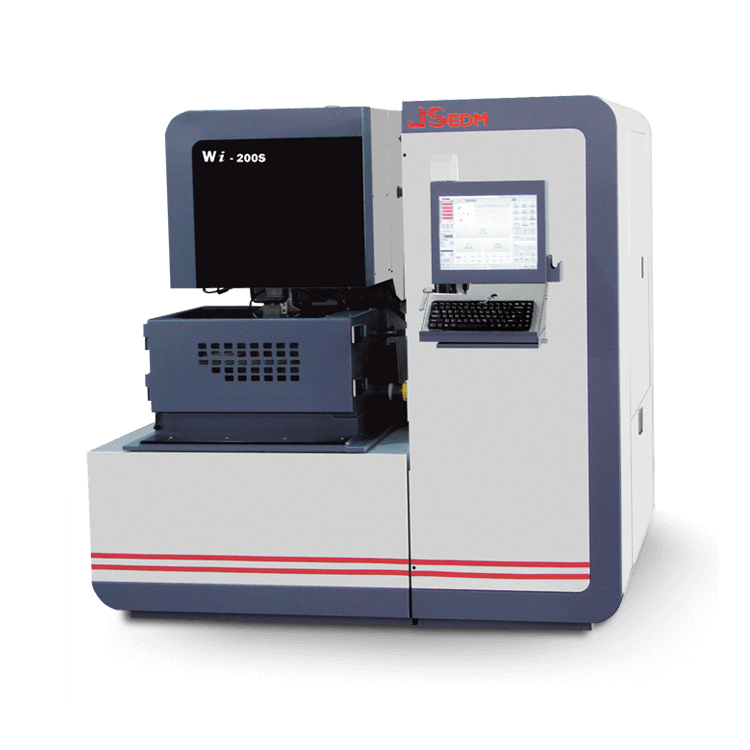

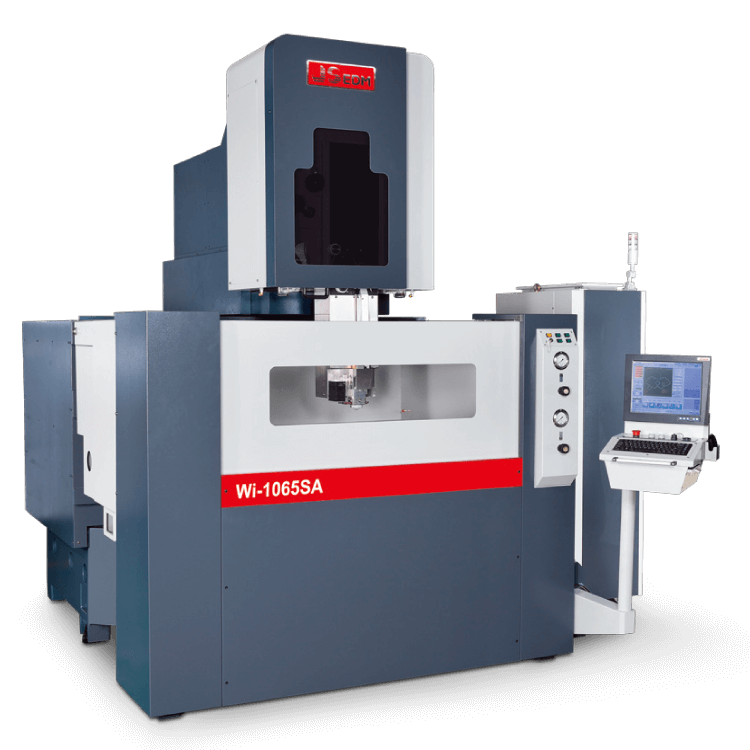

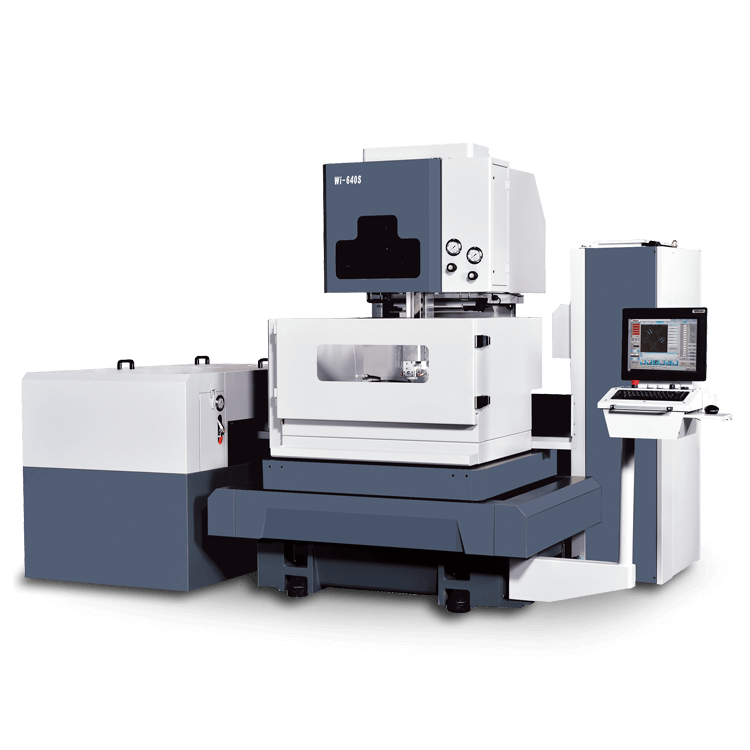

Max. Work Piece Size L x W x H (mm) : 400 x 400 x 140 mm

Max. Work Piece weight : 50Kgs

Drive & Servo (Mitsubishi) : 5 Axes AC Servo

X/Y Axis Travel (Liner Servo System) : 150/240 mm

Max. Tapper Angle : ±12˚ (50 mm)

X, Y Axis With HEIDENHAIN Liner Scale (Measurement Resolution) : 0.5µm

Best Surface Roughens (Ra) : <0.1µm

Automatic Wire-Threading System (Submerge Type) : Standard

Z Axis Travel : 150mm

U/V Axis Travel : 35 /35mm

Wire Diameter : ø 0.05 ~ 0.2mm

Machine Weight : 3,500 Kgs

This machine performed by DSP Technologies

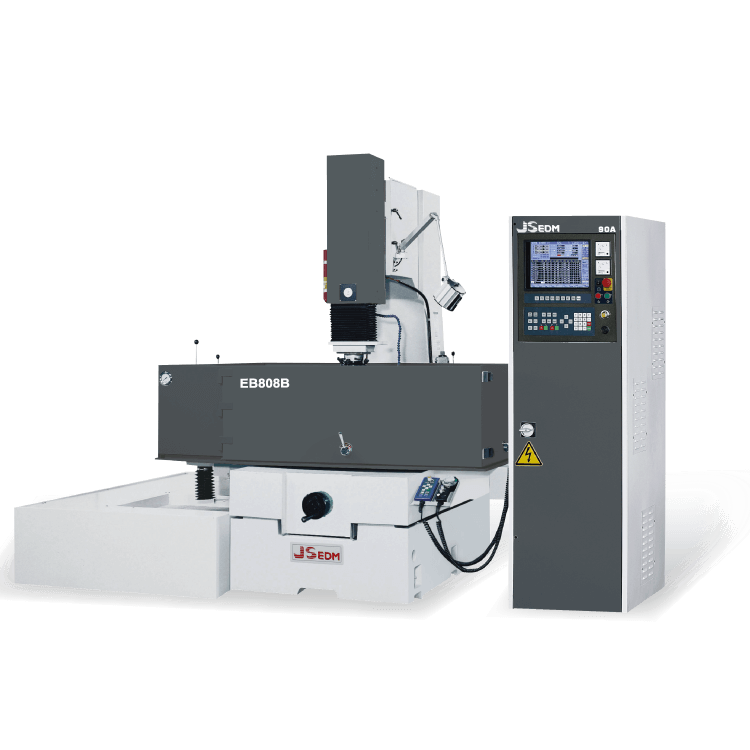

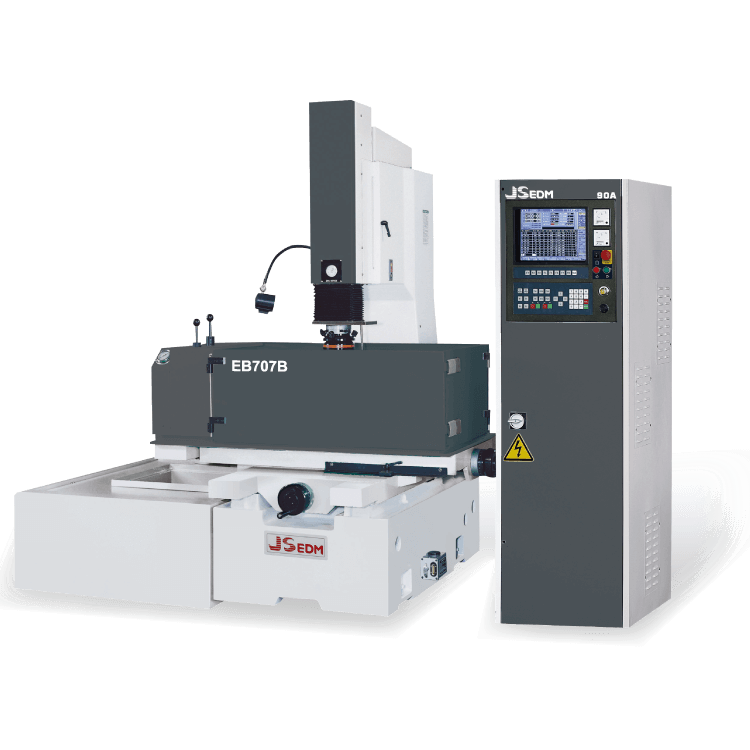

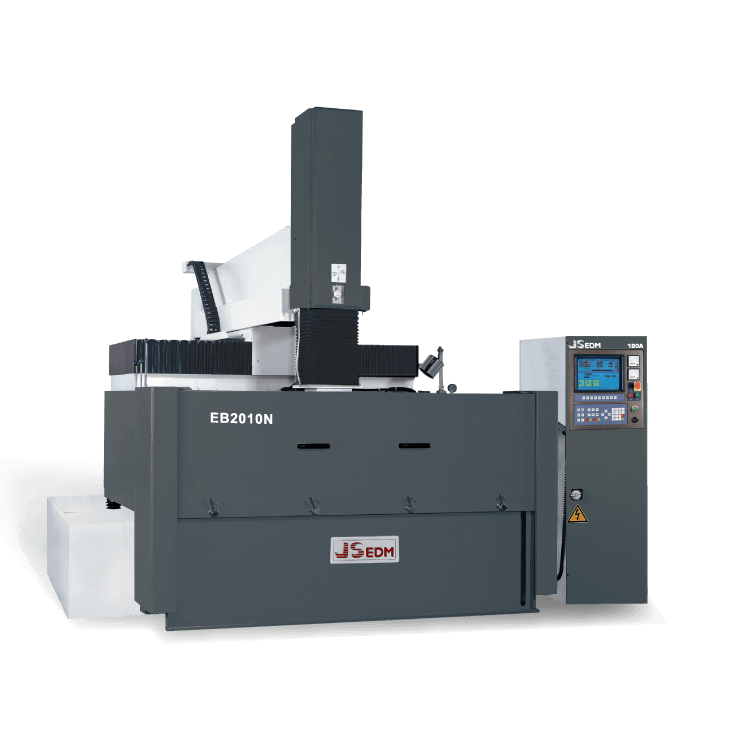

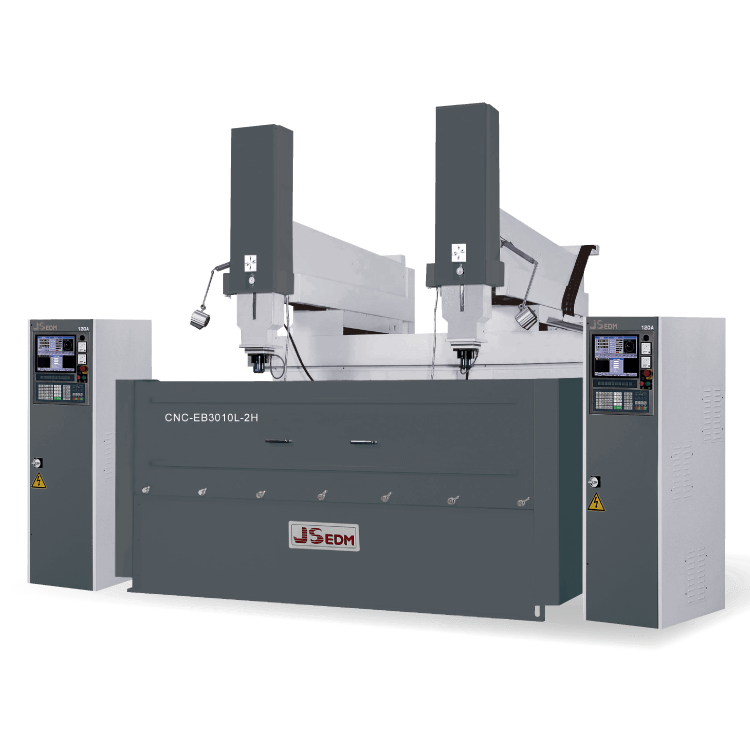

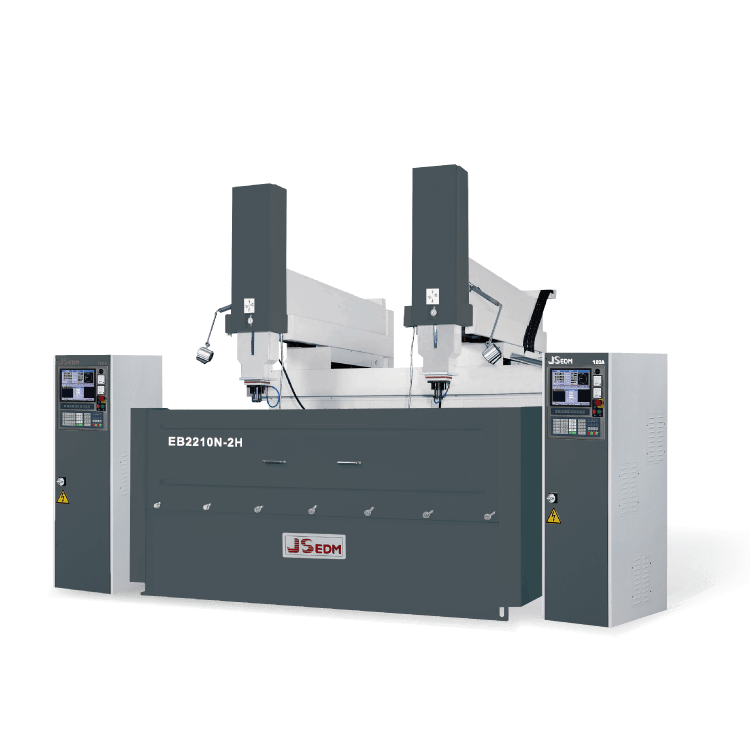

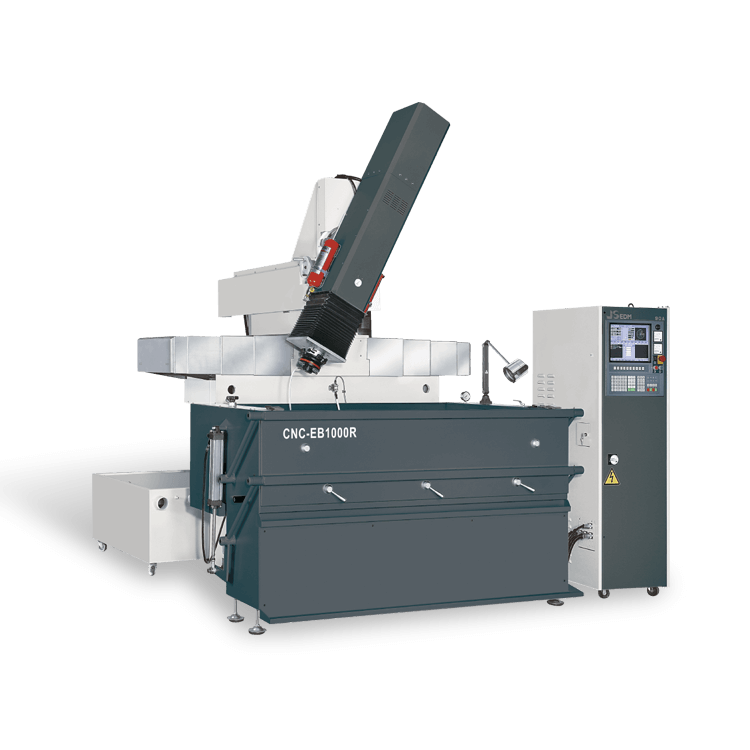

Sturdy and compact headstock for easy operation with high precision

Main shaft adopts of alloy steel guide rail to coordinate with ball bearing, low rate of friction to secure the precision of feeding

Auto depth position stop setting, it stops automatically when reaching the processing depth

X, Y Saddles are stuck with liner way & Ball screws, ensure the precision & delicate operation

Machine frame is constructed with tempered FC-30 casting under heat treatment to keep accurate precision

With C axis accessory, the electrode can turn a arbitrary angle make processing

With optional ATC accessory, the machining would be finished in no-attended condition

This machine performed by DSP Technologies

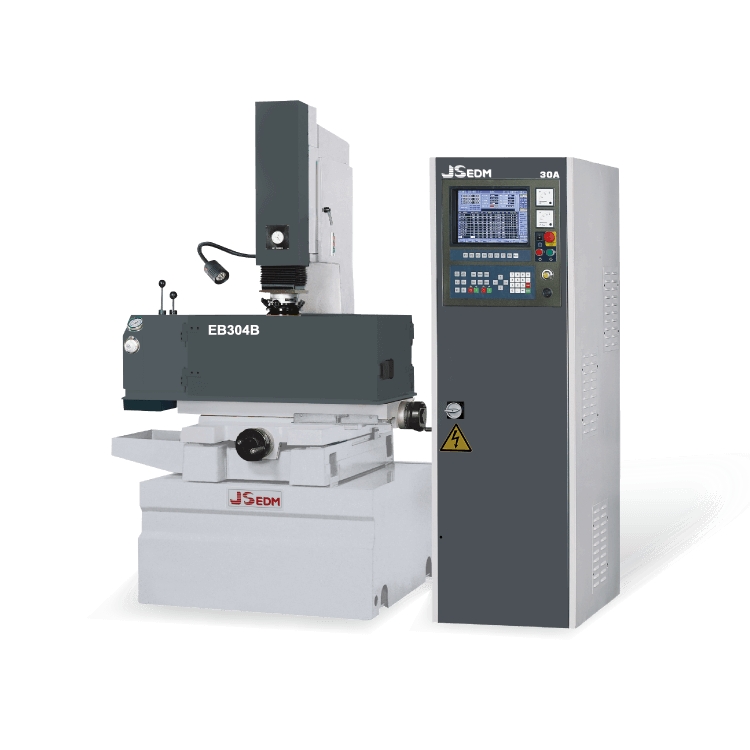

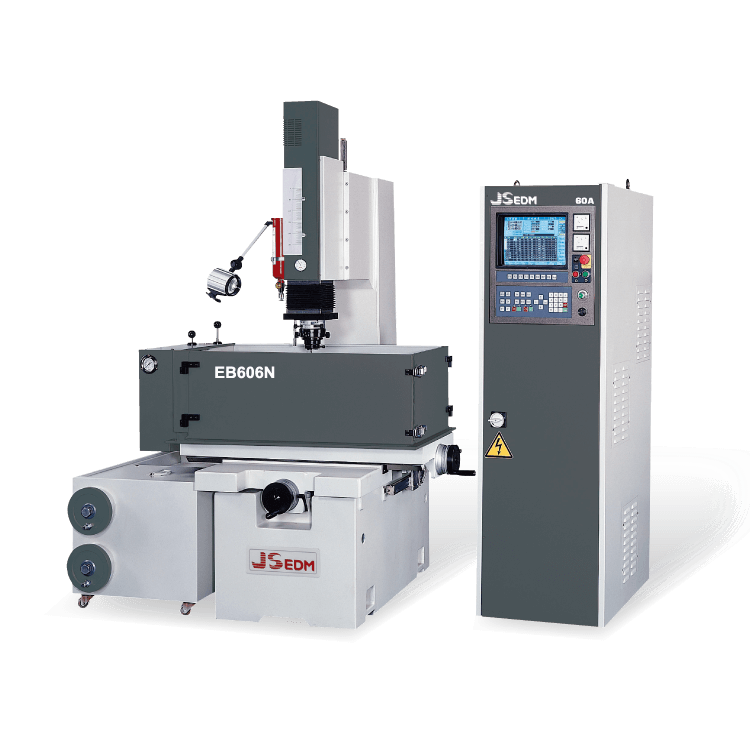

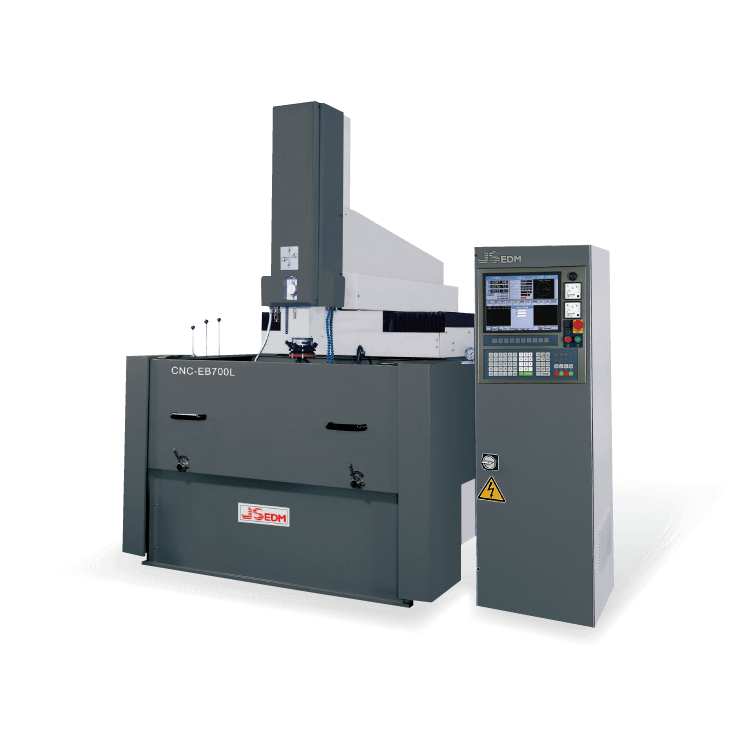

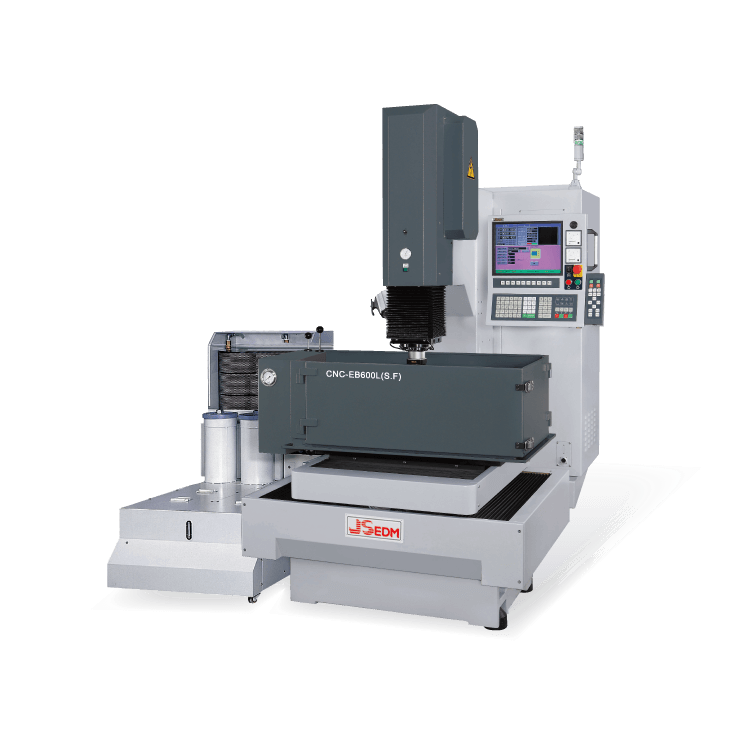

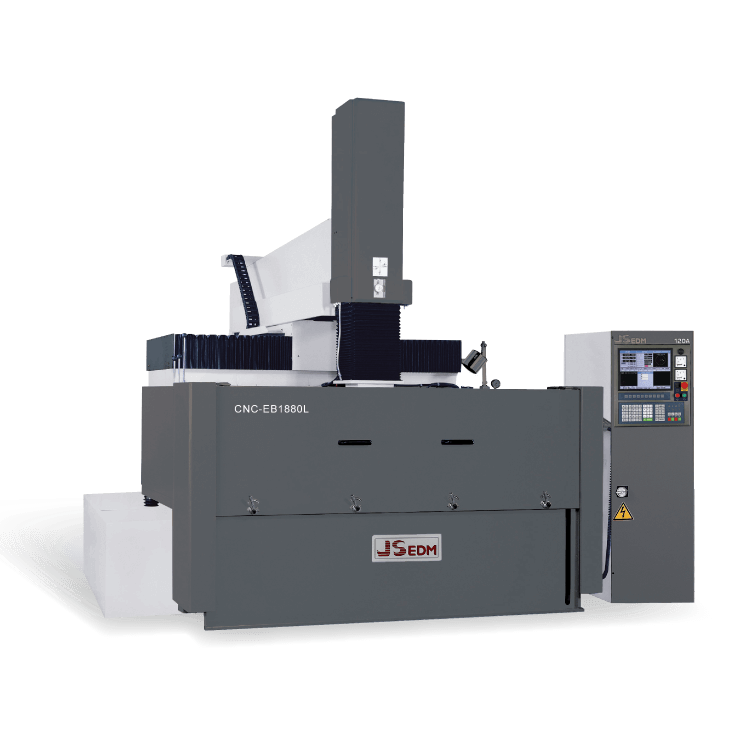

The Machine frame has run through FC30 by having heat treatment and annealing process to ensure the metal with high toughness and prevent deformation

The working table has gone through high frequency induction hardening and surface polishing to increase hardness and degrease tolerance

Ball Screw are utilized in X, Y Axis

One V and one flat design for accuracy

The Contacting faces of X,Y Axis are TURICE-B for smoother movement

Linear guide way and high accuracy screw used on Z-Axis, with PWM servo system can be perform maximum working efficiency

Remote Controller is provided to the user

Back slide is provided for Z-Axis

This machine performed by DSP Technologies

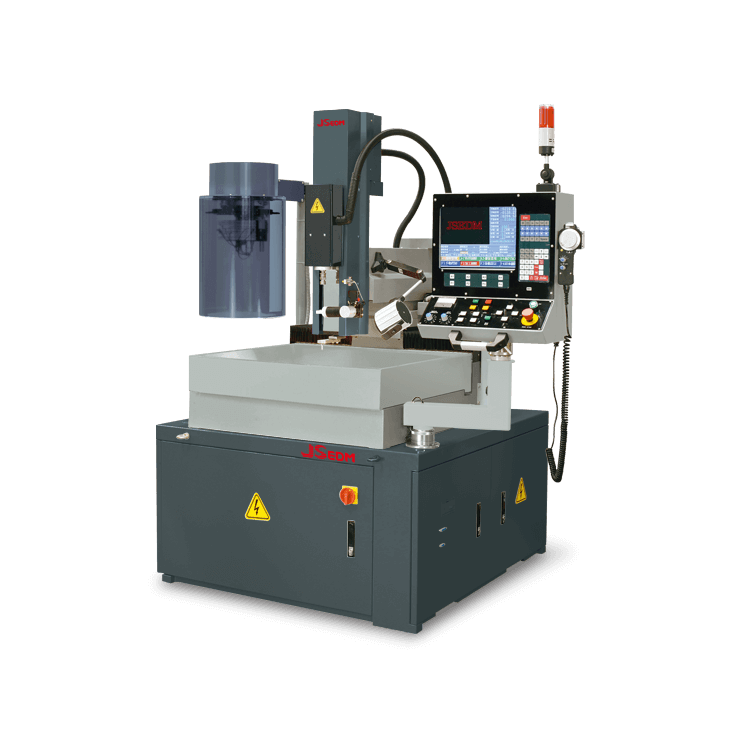

Precision servo motors on X / Y /Z axis. The design provides excellent stability during drilling

Provides 1µ optical scale, linear slide way and ball screw to ensure accurate movement

Reads NC Program, G-Code and DXF files directly. Finds the cutting start point automatically and beings the fine hole drilling process

When NC program is not available, the machine coordination can be inputted directly

Automatic centering, edging and internal diameter direction

Coordinates can rotate any angle

Drilling capacity from 0.2mm to 3.0mm. Brass or Copper electrode available

Mirror image function

Automatically illustrates the path of current and next drilling position with colors

Z-Axis auto reset and depth calculation. (Z-Axis checks hole depth automatically, and returns to complete any that is too shallow)

Data input by USB or network transfer

Simple and user-friendly interface

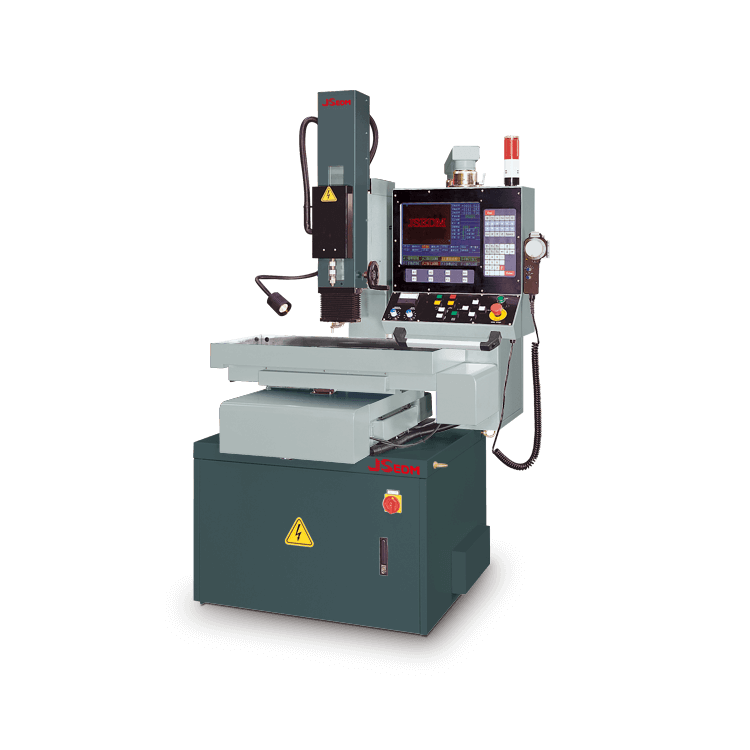

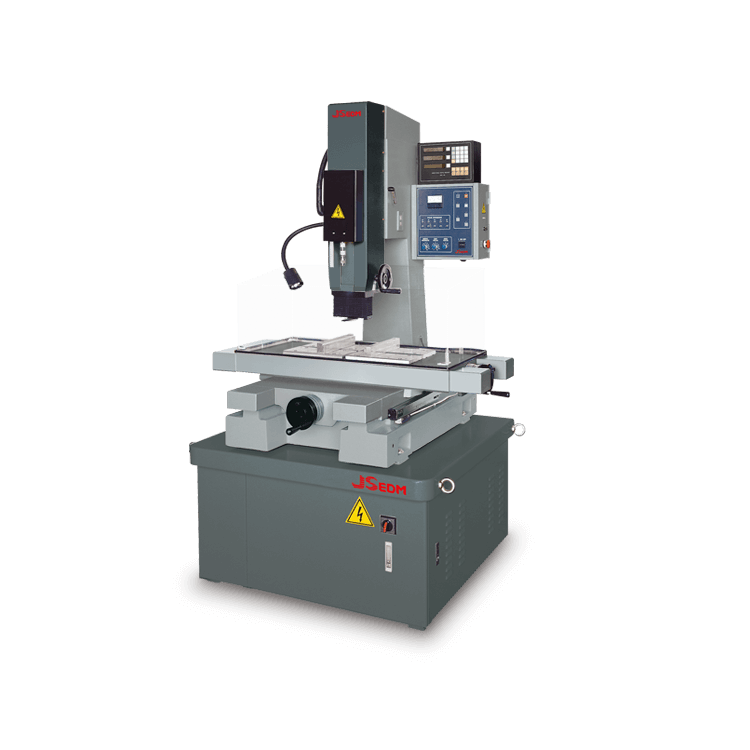

Precision servo motor control for stable drilling

Designed for drilling hardened tool steel. Carbides and other conductive materials

Suitable for longer work pieces and plastics molds

Drilling capacity from 0.2mm to 3.0mm

Brass and Copper Electrode available

Automatic pressure release function

Long life work table made of stainless steel

3 Axes DRO set that depth control
