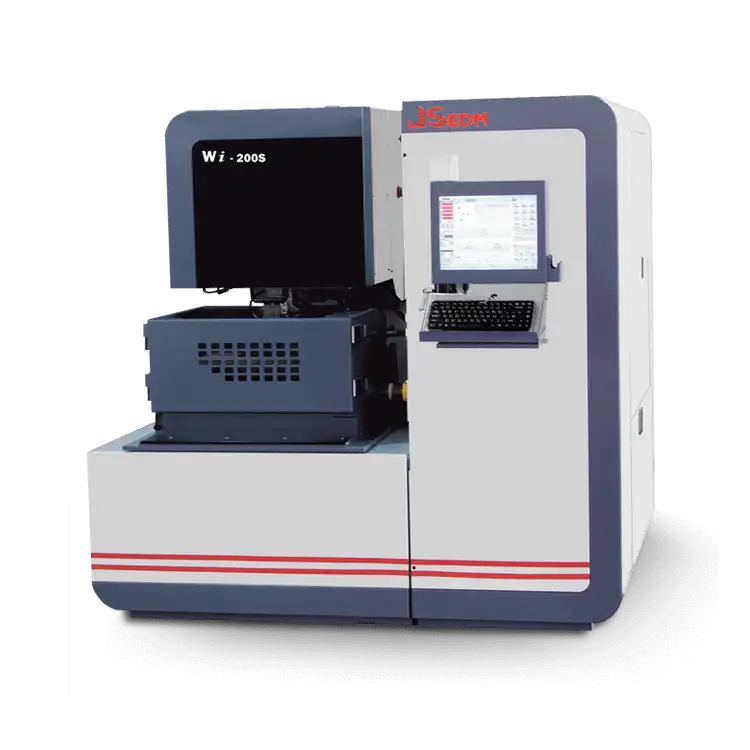

Max. Work Piece Size L x W x H (mm) : 400 x 400 x 140 mm
Max. Work Piece weight : 50Kgs
Drive & Servo (Mitsubishi) : 5 Axes AC Servo
X/Y Axis Travel (Liner Servo System) : 150/240 mm
Max. Tapper Angle : ±12˚ (50 mm)
X, Y Axis With HEIDENHAIN Liner Scale (Measurement Resolution) : 0.5µm
Best Surface Roughens (Ra) : <0.1µm
Automatic Wire-Threading System (Submerge Type) : Standard
Z Axis Travel : 150mm
U/V Axis Travel : 35 /35mm
Wire Diameter : ø 0.05 ~ 0.2mm
Machine Weight : 3,500 Kgs
This machine performed by DSP Technologies
.webp "JS EDM - CNC-EB600L(S.F)")

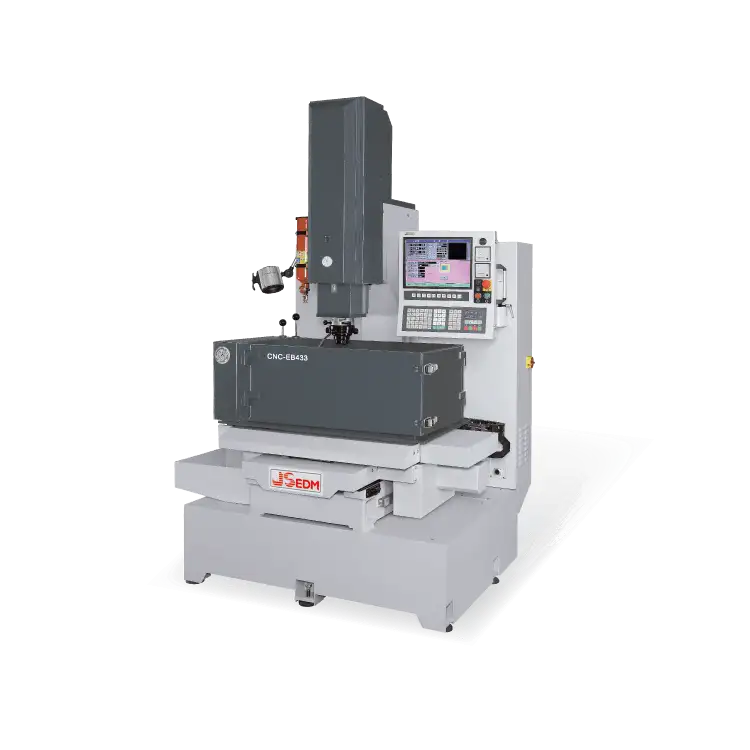

Sturdy and compact headstock for easy operation with high precision
Main shaft adopts of alloy steel guide rail to coordinate with ball bearing, low rate of friction to secure the precision of feeding
Auto depth position stop setting, it stops automatically when reaching the processing depth
X, Y Saddles are stuck with liner way & Ball screws, ensure the precision & delicate operation
Machine frame is constructed with tempered FC-30 casting under heat treatment to keep accurate precision
With C axis accessory, the electrode can turn a arbitrary angle make processing
With optional ATC accessory, the machining would be finished in no-attended condition
This machine performed by DSP Technologies
The Machine frame has run through FC30 by having heat treatment and annealing process to ensure the metal with high toughness and prevent deformation
The working table has gone through high frequency induction hardening and surface polishing to increase hardness and degrease tolerance
Ball Screw are utilized in X, Y Axis
One V and one flat design for accuracy
The Contacting faces of X,Y Axis are TURICE-B for smoother movement
Linear guide way and high accuracy screw used on Z-Axis, with PWM servo system can be perform maximum working efficiency
Remote Controller is provided to the user
Back slide is provided for Z-Axis
This machine performed by DSP Technologies
Precision servo motors on X / Y /Z axis. The design provides excellent stability during drilling
Provides 1µ optical scale, linear slide way and ball screw to ensure accurate movement
Reads NC Program, G-Code and DXF files directly. Finds the cutting start point automatically and beings the fine hole drilling process
When NC program is not available, the machine coordination can be inputted directly
Automatic centering, edging and internal diameter direction
Coordinates can rotate any angle
Drilling capacity from 0.2mm to 3.0mm. Brass or Copper electrode available
Mirror image function
Automatically illustrates the path of current and next drilling position with colors
Z-Axis auto reset and depth calculation. (Z-Axis checks hole depth automatically, and returns to complete any that is too shallow)
Data input by USB or network transfer
Simple and user-friendly interface
Precision servo motor control for stable drilling
Designed for drilling hardened tool steel. Carbides and other conductive materials
Suitable for longer work pieces and plastics molds
Drilling capacity from 0.2mm to 3.0mm
Brass and Copper Electrode available
Automatic pressure release function
Long life work table made of stainless steel
3 Axes DRO set that depth control
Precision servo motors on X / Y /Z axis. The design provides excellent stability during drilling
Provides 1µ optical scale, linear slide way and ball screw to ensure accurate movement
Reads NC Program, G-Code and DXF files directly. Finds the cutting start point automatically and beings the fine hole drilling process
When NC program is not available, the machine coordination can be inputted directly
Automatic centering, edging and internal diameter direction
Coordinates can rotate any angle
Drilling capacity from 0.2mm to 3.0mm. Brass or Copper electrode available
Mirror image function
Automatically illustrates the path of current and next drilling position with colors
Z-Axis auto reset and depth calculation. (Z-Axis checks hole depth automatically, and returns to complete any that is too shallow)
Data input by USB or network transfer
Simple and user-friendly interface
Performance similar to slow speed wire cutting, but cheaper price
Performance similar to slow speed wire cutting, but cheaper price
Small wire diameters 0.12mm – 0.30mm (down to 0.08mm)
Accuracy: 0.015 mm, even 0.01mm
Four Axes independent UV work, all linear rails with stepping motor
Special Tensioning mechanism for molybdenum wire, keep stable cutting
3 Axis controlled by AC Servo motor - Optional. (Panasonic Drive with motor)
X/Y axis controlled with MPG control - Optional
With 3 taper as standard attachment. Taper Angles up to 15°, 30° as option
Attachment of Orbiting System. It can use Threading, Polishing & Undercut Process
NC Controlled Z-Axis feed
Compact design for small part machining
Rigid Machine base
Linear scales in all axes to ensure constant precision
Separate dielectric reservoir
Low-maintenance and high efficiency
DC Servo-drive for precise control and system stability
Anti-carbon automatically detection circuit
10-Stage program to finish one time from rough to precise
Easy to learn operation
Direct parameter input and adjustment at the control panel
Translating between Chinese and English, Metric and Imperial
Machining parameters for specific operations can be stored
Fire prevention and liquid level control automatically
Different discharge system as optional
Conform to the CE safety standard of power box
Drilling diameter from ø0.3 mm to ø3.0mm. The maximum depth ratio could be 300:1
Auto depth control, blind hole can also be making
Precision (Hole straightness) is less than 0.04mm
Can Drill on oblique and curved surface directly
Digital readout 3 axis (X, Y, Z)
Fast processing speed and low show consumption
Can use water coolant, low cost and no pollution
It can possible to depth control
Can use high pressure pump
EDM Oil
Brass / Coated Wire
Molybdenum Wire
WEDM Gel – JR3
Graphite
Copper / Brass Electrode
Diamond Guides
Resin
Minerals
Carbides
Filters
Guides
Ceramic Nozzle
Single / Double End Roller
Spring Type Wire Tension
PCB Cards & Boards
Electrical Controller
Software's
Servo Motors
Drives
Bellows
